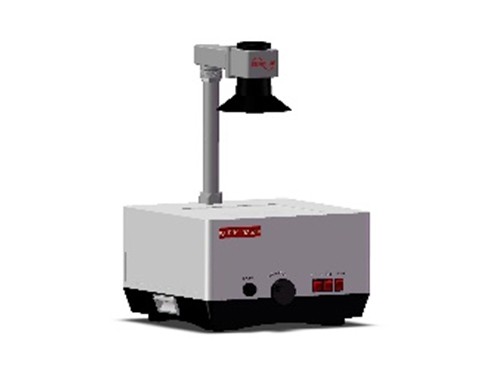

Applications

-This equipment evaluates the quality condition of glass plate and its edge, in accordance with relevant industry standard or code.

-Measure the edge dimension of glass piece.

Specifications

-Measurement Range: 0.05mm,0.1mm,0.2mm,0.3mm,0.4mm,0.8mm,1.0mm,1.2mm,…,etc., up to relevant code being applied， and is selectable via software.

-Min target radius：0.05mm

-Resolution: less than 0.025mm

-Detection Area: Not less than 130×130mm

-Tray size:  200mm×150mm，net area for bead blackspot inspection.

-Amplification: more than 20times.

-Light-intensity index : Not less than 6000 Lumens

-Illuminator bulb assembly: 24V/60W

-Power Supply: 220V,50HZ

-Dimension:  around 459mmⅹ426mmⅹ(276mm+380mm)
